1M External Mini SAS HD SFF-8644 To 4 x Mini SAS SFF-8088 Cable

Introduction

The External Mini SAS HD SFF-8644 to 4 x Mini SAS SFF-8088 cable is a type of data cable used to connect external storage devices, such as hard drives and RAID arrays, to a host computer or server.

The cable features a Mini SAS HD SFF-8644 connector on one end and four Mini SAS SFF-8088 connectors on the other end. The Mini SAS HD SFF-8644 connector is a high-density connector that supports up to four lanes of data transfer, while each Mini SAS SFF-8088 connector supports up to two lanes of data transfer.

This type of cable is commonly used in enterprise storage environments where high-speed data transfer is required. The cable allows for the connection of up to four external storage devices to a single host server or computer, providing a cost-effective solution for expanding storage capacity.

It is important to ensure that the host server or computer has the necessary Mini SAS HD SFF-8644 and Mini SAS SFF-8088 connectors to support this cable before purchasing it.

Specifications

• Connector Type on One End: Mini SAS HD SFF-8644 (male)
• Connector Type on the Other End: 4x Mini SAS SFF-8088 (male)
• Cable Length: Varies, but typically ranges from 1 to 3 meters
• Made from Belden UL Approved 30AWG Solid Silver plated Copper
• Data Transfer Rate: Supports up to 12 Gbps per lane for a total of 48 Gbps (4 lanes)
• Cable Type: Passive copper cable
• Supported Devices: External storage devices such as hard drives and RAID arrays
• Supported Operating Systems: Compatible with a wide range of operating systems, including Windows, Linux, and macOS.

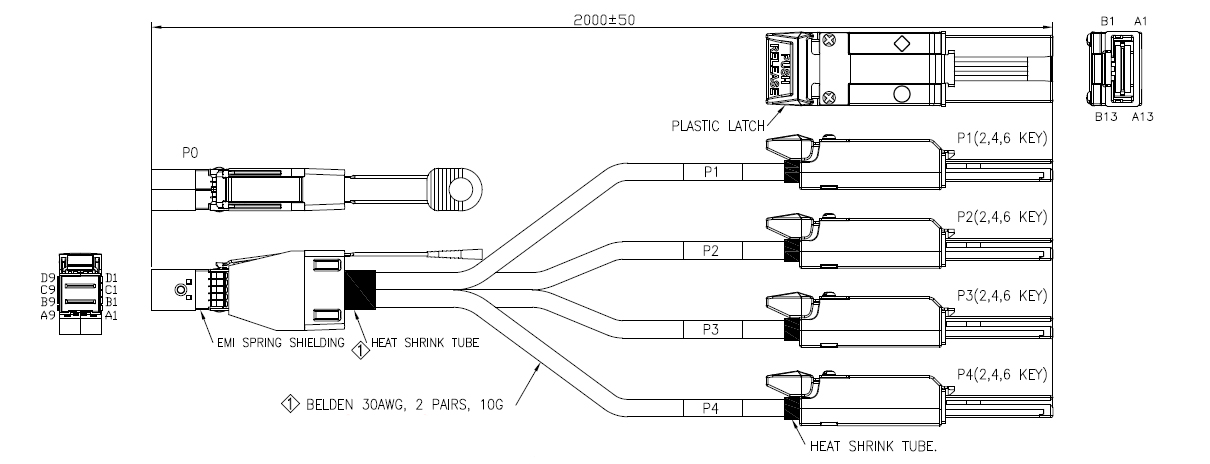

Cable Drawing
