1M External Mini SAS HD SFF-8644 To 4 x SATA Cable

Introduction

An External Mini SAS HD SFF-8644 to 4x SATA Cable is a data cable used to connect an external SAS/SATA controller with a Mini SAS HD SFF-8644 port to four SATA drives. It is a useful cable for connecting multiple SATA drives to an external SAS/SATA controller with a Mini SAS HD SFF-8644 port. It provides reliable data transfer, is durable and compatible with a wide range of devices. This cable is commonly used in server and storage applications where high-speed data transfer is required.

Specifications

• Cable Type: External Mini SAS HD SFF-8644 to 4x SATA Cable.
• Data Transfer Rate: The cable supports SATA III data transfer rates up to 6 Gbps per channel.
• Length: The cable is available in different lengths, ranging from 0.5 meters to 1 meters.
• Connector Type: The cable has one Mini SAS HD SFF-8644 connector at one end and four SATA connectors at the other end.
• Compatibility: The cable is compatible with external SAS/SATA controllers and SATA III drives.
• Wire Gauge: The cable is made of high-quality solid tinned Copper wire with a wire gauge of 30 AWG.
• Signal Integrity: The cable is designed to ensure optimal signal integrity and minimal crosstalk, resulting in high-speed and reliable data transfer.
• Durability: The cable is built with high-quality materials and is tested for durability and reliability.

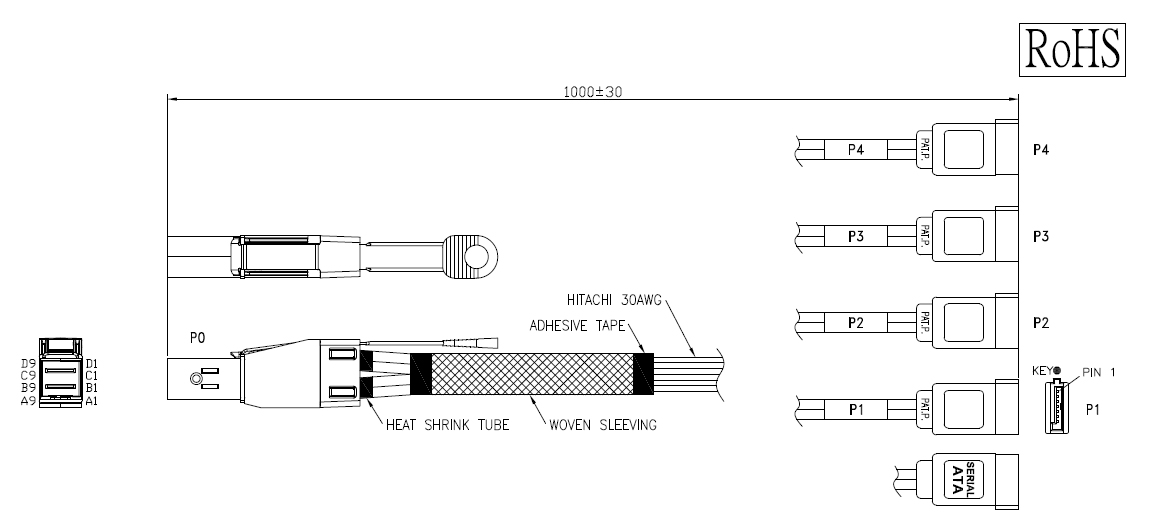

 Cable Drawing
