2M External Mini SAS26 Pin SFF-8088 to 4 x Mini SAS26 Pin SFF-8088 Cable

Introduction

The Mini SAS26 Pin SFF-8088 to 4 x Mini SAS26 Pin SFF-8088 Cable is a type of cable commonly used in data storage systems. It is designed to allow for the connection of up to four external devices that use the Mini SAS26 Pin SFF-8088 interface to a single host controller or HBA (Host Bus Adapter) that also uses the Mini SAS26 Pin SFF-8088 interface.

The cable has one Mini SAS26 Pin SFF-8088 connector on one end and four Mini SAS26 Pin SFF-8088 connectors on the other end. The Mini SAS26 Pin SFF-8088 connector is a high-speed data transfer interface that is commonly used in storage systems to provide fast and reliable data transfer rates.

The cable is typically used in large-scale storage systems, such as data centres or enterprise storage systems, where multiple storage devices need to be connected to a single host controller or HBA. By using this cable, it is possible to reduce the number of cables required to connect multiple storage devices, making it easier to manage and maintain the system.

The Mini SAS26 Pin SFF-8088 to 4 x Mini SAS26 Pin SFF-8088 Cable is typically designed to support data transfer rates of up to 6 Gbps, making it ideal for high-performance storage applications. It is also designed to be durable and reliable, with a rugged construction that can withstand the rigors of daily use.

Overall, the Mini SAS26 Pin SFF-8088 to 4 x Mini SAS26 Pin SFF-8088 Cable is a useful and versatile tool for anyone who needs to connect multiple external storage devices to a single host controller or HBA in a high-performance computing environment.

Specifications

• Cable type: Mini SAS26 Pin SFF-8088 to 4 x Mini SAS26 Pin SFF-8088 Cable
• Connector A: 1 x Mini SAS26 Pin SFF-8088 (male)
• Connector B: 4 x Mini SAS26 Pin SFF-8088 (male)
• Cable length: 2 meters
• Data transfer rate: Supports up to 6 Gbps per channel, per direction (total of 24 Gbps with all 4 channels used)
• Cable type: Passive copper cable
• Compatibility: Compatible with SAS and SATA devices that use the Mini SAS26 Pin SFF-8088 interface
• Conductor gauge: 28AWG Solid Silver-Plated Copper wire
• Shielding: 30AWG Solid Tinned Plated Copper with at least 85% coverage, supports EMI (Electromagnetic Interference) shielding to reduce interference and noise
• Jacket material: Madison CL2 material for the cable jacket
• RoHS Compliant

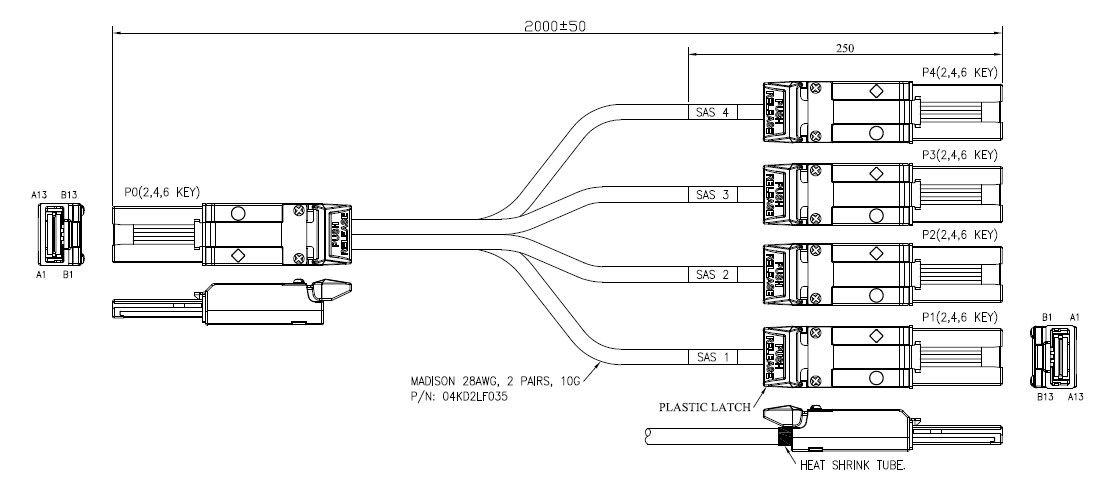

Cable Drawing
