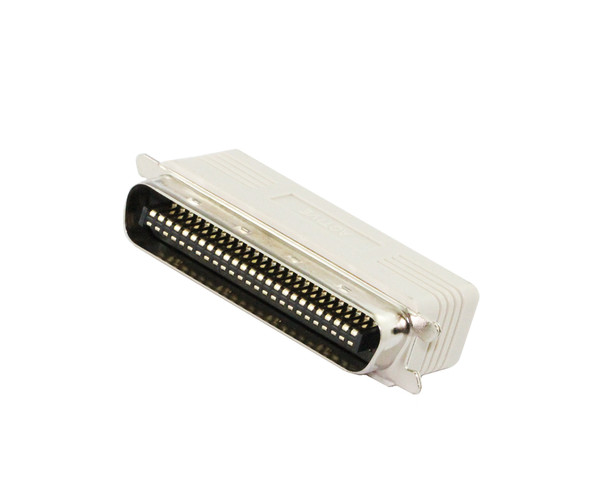

C50M SCSI 1 Terminator ( Active )

Introduction

This Centronics 50-pin SCSI-1 active terminator is a device used to terminate a SCSI (Small Computer System Interface) bus that uses the Centronics 50-pin connector interface. The term "active terminator" indicates that this terminator is actively powered and designed to manage signal termination more effectively than passive terminators.

Centronics 50-pin Connector (Centronics 50M): The Centronics 50-pin connector is a common type of connector used in early SCSI implementations. It has 50 pins and is used to connect SCSI devices to a SCSI bus. This connector type was used in SCSI-1 setups.

SCSI-1: SCSI-1 (Small Computer System Interface-1) is one of the earliest versions of the SCSI standard. It defined a set of specifications for connecting and communicating between various types of computer peripherals, including hard drives, CD-ROM drives, printers, scanners, and more. SCSI-1 uses the Centronics 50-pin connector as the physical interface.

Active Terminator: An active terminator, as explained in previous responses, is a termination device that actively manages signal termination on a SCSI bus. It helps prevent signal reflections and maintain signal integrity. Active terminators include electronic components that can adapt to the impedance of the SCSI bus, reducing the likelihood of signal degradation.

In the context of a Centronics 50-pin SCSI-1 active terminator, this device would be designed to provide active termination for a SCSI-1 bus using the Centronics 50-pin connector. It helps ensure that signals travel smoothly along the bus, preventing disruptions that could lead to data errors or corruption.
